Well it’s about time. https://nyc.streetsblog.org/2024/04/19/justice-dept-citing-streetsblog-reporting-threatens-to-sue-nypd-over-cops-sidewalk-parking. This has to do with violations of the Americans with Disabilities Act (ADA). Remember, the ADA is civil rights legislation, which is why the Department of Justice is involved.
Where are police, fire fighters, teachers, and so on supposed to park? In legal spaces. Better yet, take public transportation.
Bravo to Streetsblog for this.

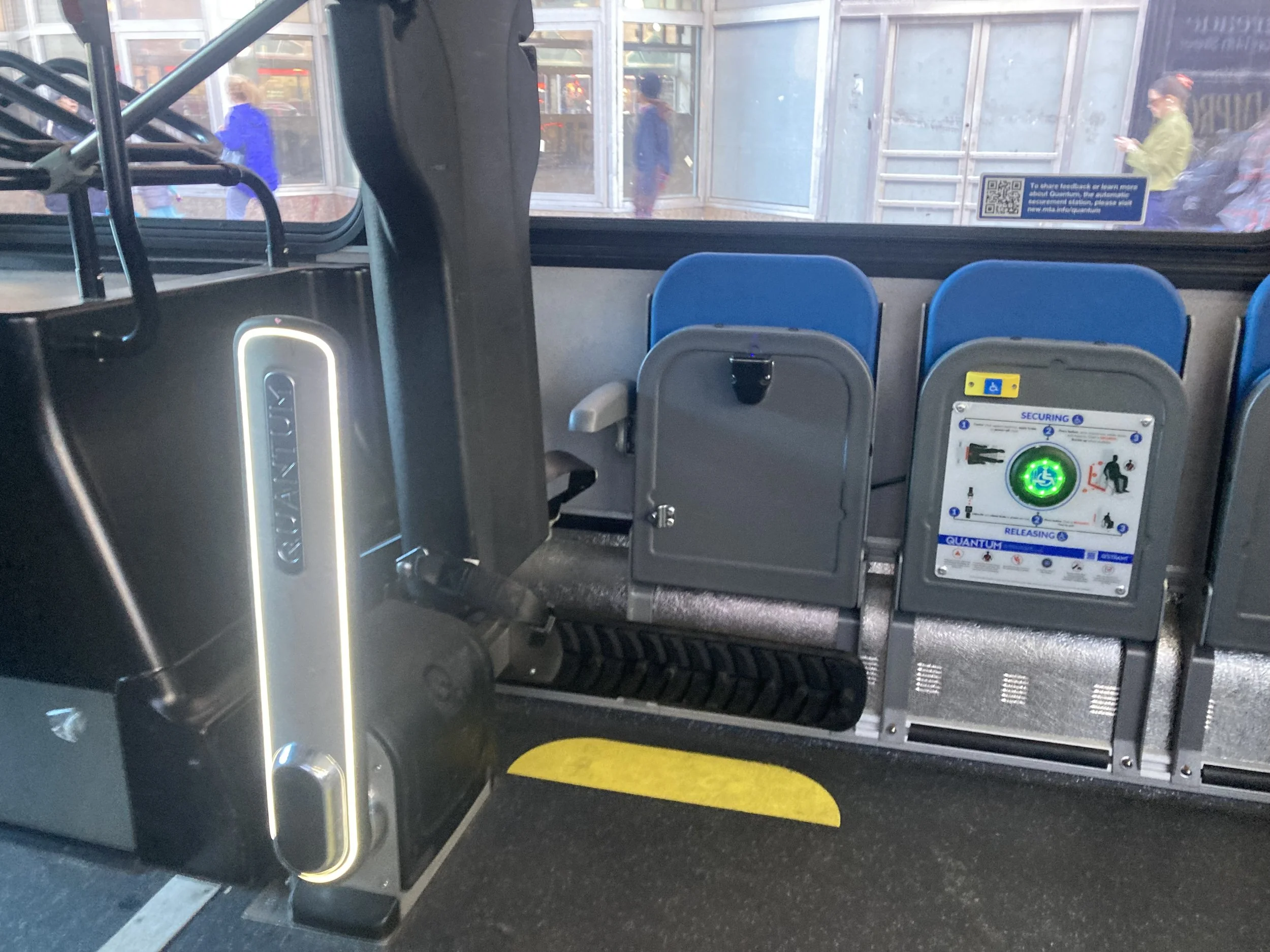

Today on the M1 bus in Manhattan I saw a pilot installation of a self-securement system for wheelchair passengers. The bus operator does not have to secure the wheelchair in place as at present but is trained to assist. The wheelchair user boards the bus and moves into the wheelchair position facing toward the rear, which is safer. Once in position, press the green passenger signal button found on the side. The machine will beep twice, then the securement arm will lower into place. To exit the bus, press the yellow button above the green button to undo the securement and prepare to exit the bus.
I think this will be more dignified and convenient for wheelchair passengers and should speed bus service. I look forward to discussion of this and wider deployment in the city’s bus fleet.
Here’s a link to an article in the December 2022/January 2023 issue of Brain and Life magazine that is all about accepting aging and disability. It has much to say for all of us.
https://www.brainandlife.org/articles/the-power-of-accepting-aging
This is an excellent podcast from Brain and Life: https://www.brainandlife.org/podcast/exploring-accessibility-and-arts-at-lincoln-center?utm_source=Informz&utm_medium=Email&utm_campaign=24%20BL%20Podcast&utm_content=1
The situation described here is an outrage. Safe, affordable, accessible housing is a human right. Full stop. It isn’t too much to ask for the laws to be followed and enforced.
I came across an interesting piece about systems thinking in the realm of accessibility and share it with you here: Full article: Systems thinking for assistive technology: a commentary on the GREAT summit (tandfonline.com). It ties in with something I stress to people with whom I work and others: accessibility cannot be viewed just as an add-on, a checklist, an onerous set of requirements. It has to be baked into our designs, specifications, and activities, so we don’t think about it; it is just there. By being "just there” our designs, specifications, and activities will react to advances in the state of the art.
Great item on National Public Radio about a teenage amputee planning to compete in the San Francisco Marathon on crutches. His hope is to raise awareness for athletes with disabilities. With this I give a nod to my barber Mark, who lost a leg in an accident and has not stopped, with or without his prosthesis, and to my neighbor Michael, who was paralyzed by Guillain-Barre Syndrome in 2014 and now runs marathons.
That’s the title of a not-all-that-provocative article in Mass Transit magazine that is definitely worth reading and discussing. https://www.masstransitmag.com/bus/paratransit/article/53042943/have-we-outgrown-paratransit
Pickup is CapMetro's on-demand public transit service that is supported by an app developed by Via.
More on the theme of accessibility not being just ramps and elevators, here’s an interesting item about, among other things, kids with autism doing on-board announcements for transit agencies. Accessibility has to embrace people with physical disabilities, people with neuro-cognitive disabilities, and people without disabilities. It’s for all of us.
This is a great piece that was on “The Takeaway” from WNYC Studios (WNYC is the National Public Radio station in New York) about aspects of accessibility about which we think too infrequently. The title of this piece is “Understanding An Intersectional Framework of Economic Justice for People Living With Disabilities.” From the NPR website:
As many as 23 million people in the United States are struggling with long Covid. The sometimes debilitating symptoms include brain fog, fatigue, difficulty breathing, and depression or anxiety.
But almost a year after the Biden administration released guidance stating that people with long Covid can be included under the Americans with Disabilities Act, receiving benefits has been a struggle.
Even before the pandemic, roughly one in four Americans were living with a disability. And while people with disabilities are more likely overall to experience financial difficulties…that is particularly true for people of color with disabilities. According to The Century Foundation, one in four Black disabled people were living in poverty as of 2020. That’s compared to one in seven white disabled people.
Listen at the link below.

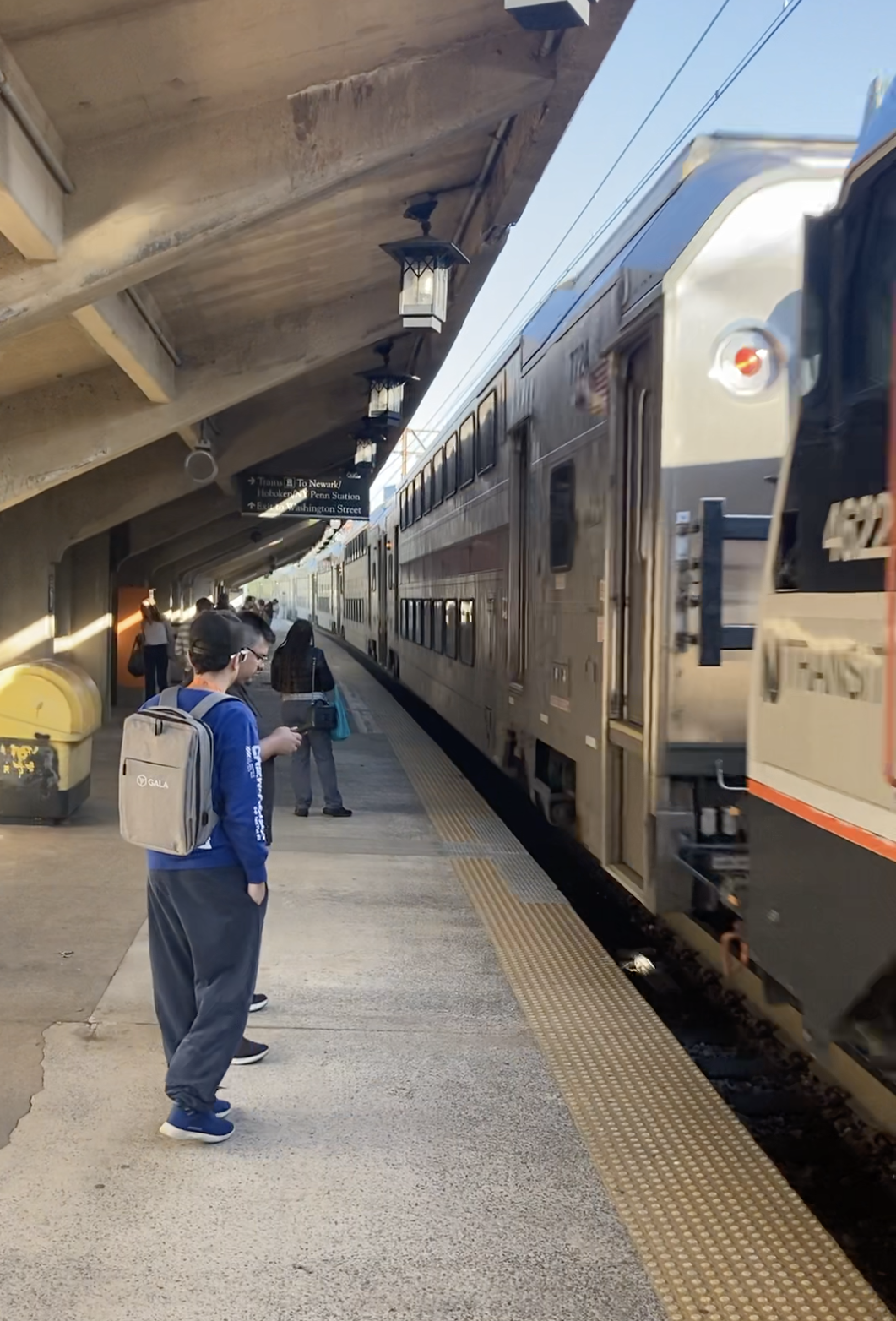

The other morning I was at the commuter rail station in Bloomfield, New Jersey to look at accessibility challenges. One of them was just getting on the train. That first step up was so high I needed help from a member of the train crew. Once I was on that first step I was able to climb - slowly - the rest of the way into the car. Level boarding, meaning there are no steps between the platform and the vehicle, is needed at all transit stations; it makes boarding and alighting safer and faster.
Air travel these days certainly has its challenges, but people with disabilities are challenged by all forms of transport, all the time. This item from The New York Times is an excellent look at the indignities faced by people in wheelchairs when traveling by air. In fairness, it extends to all forms of transport.
https://www.nytimes.com/2022/08/08/travel/air-travel-wheelchair.html?referringSource=articleShare
WHERE: 181 Street subway station (1 train, partially accessible), 168 Street subway station (1 train, not accessible), 190 Street subway station (A train, not accessible), Manhattan
Photographs by Michael Cairl.

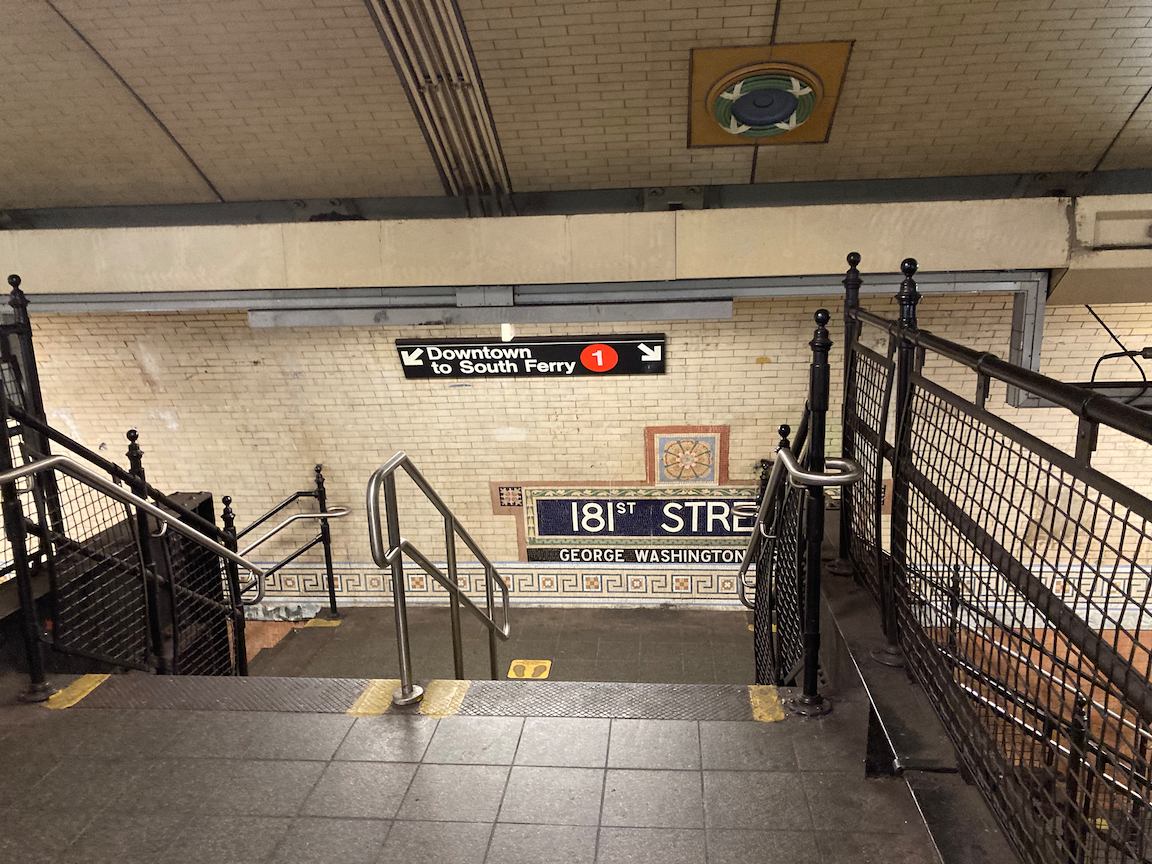

These three stations are in hilly upper Manhattan and are among the deepest in the subway system. The first two opened in 1906 and were accessible only by elevators from the street. 181 Street station remains so. 168 Street was connected to the 8th Avenue subway (A and C trains) after that station (and 190 Street) opened in 1932. All three stations had their elevators replaced recently, and both 168 Street and 181 Street were extensively rehabilitated following water damage at 181 Street. The centerpiece of both these stations is a large barrel vault 50 feet (15 meters) wide. That sounds like a lot and it is, but the two track ways take up exactly half that space, resulting in platforms about 12 feet wide. That doesn’t leave a lot of room to do things.

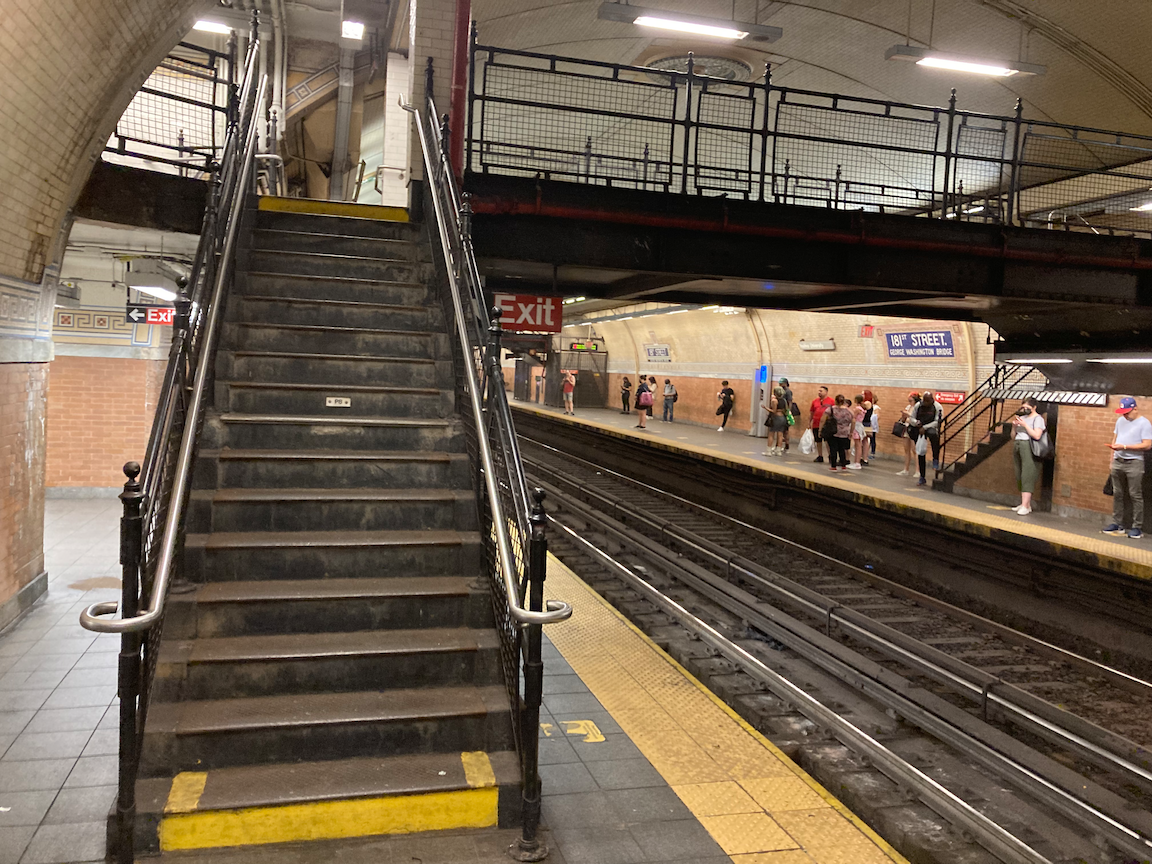

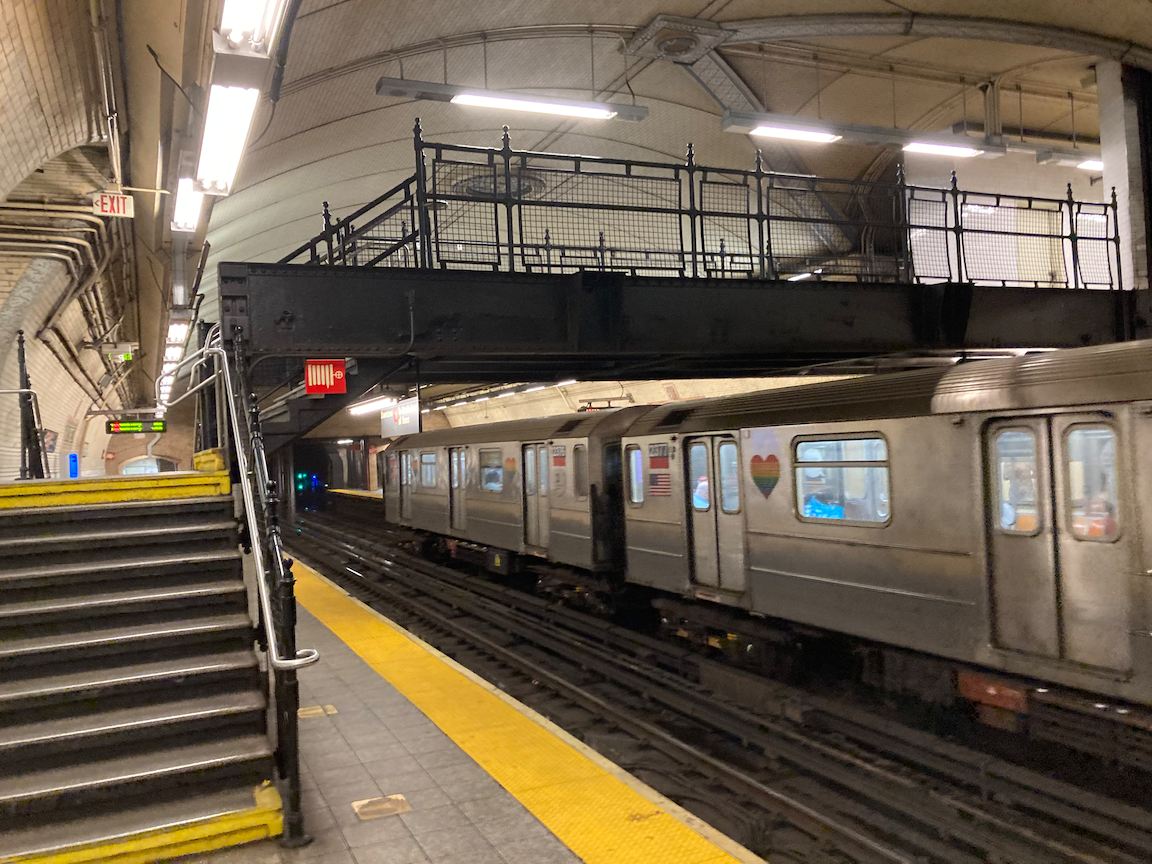

At both stations two sturdy iron bridges for pedestrian access cross the tracks. At 181 Street, one is closed to the public. Both heave several stairs leading down from the bridge to a landing, then stairs to the left and right down to the platform. The first two images are typical of both stations.
When 181 Street station was rehabilitated and the elevators replaced, access to the elevators was provided at the level of the northbound (uptown) platform and to the bridge, as shown in the next two images. At street level the station entrance is wheelchair accessible but with some minor alteration, namely installing an auto-gate in front of the station booth, accessibility could be improved a lot.

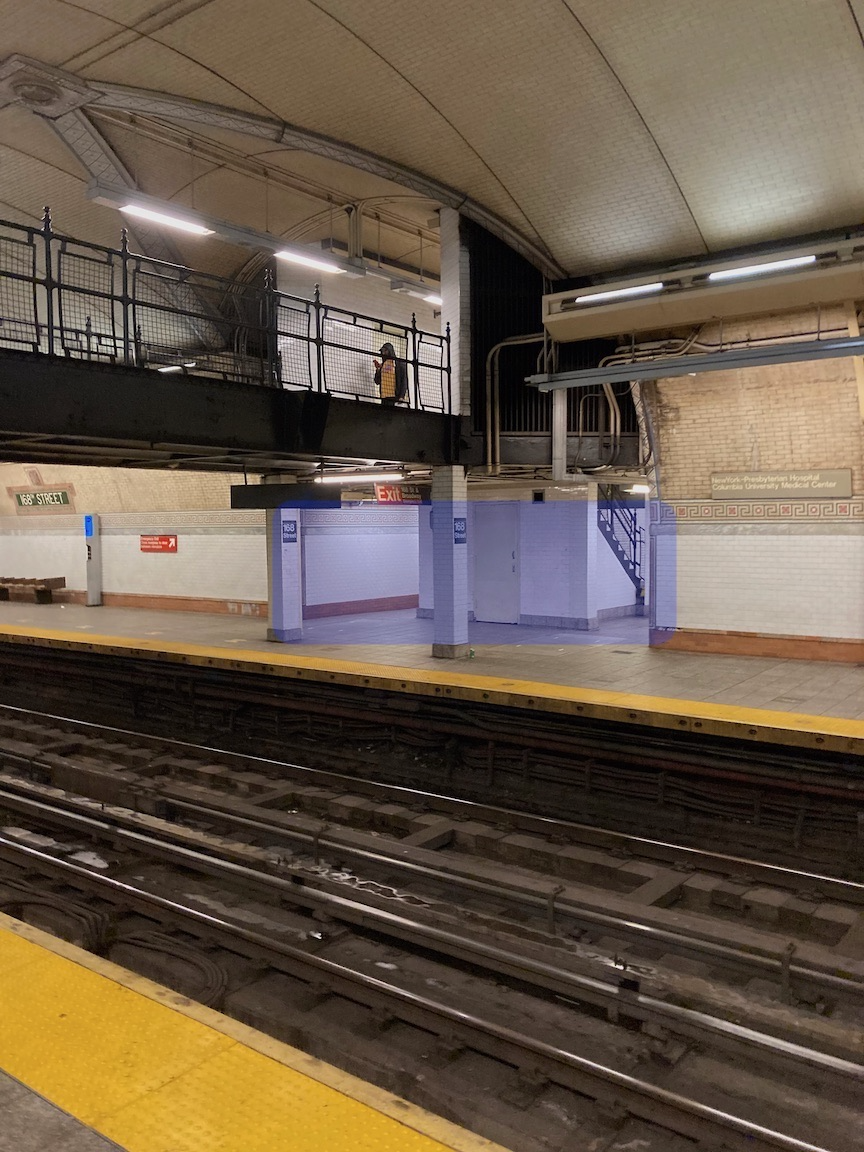

But what can be done about wheelchair accessibility for the southbound (downtown) platform? The need for stairs on the bridge is dictated by the curved tunnel wall. Cutting away some of the tunnel wall would allow for a level bridge but would necessitate new stairs. An alternative that occurred to me would to build a structure from the bridge, angling away from it toward the downtown platform, with a lift (not an elevator in a shaft) to the platform. This would upset the aesthetics of a splendid old station that is on the National Register of Historic Places, but might be the only way to make it wheelchair accessible without massive cost and expense.

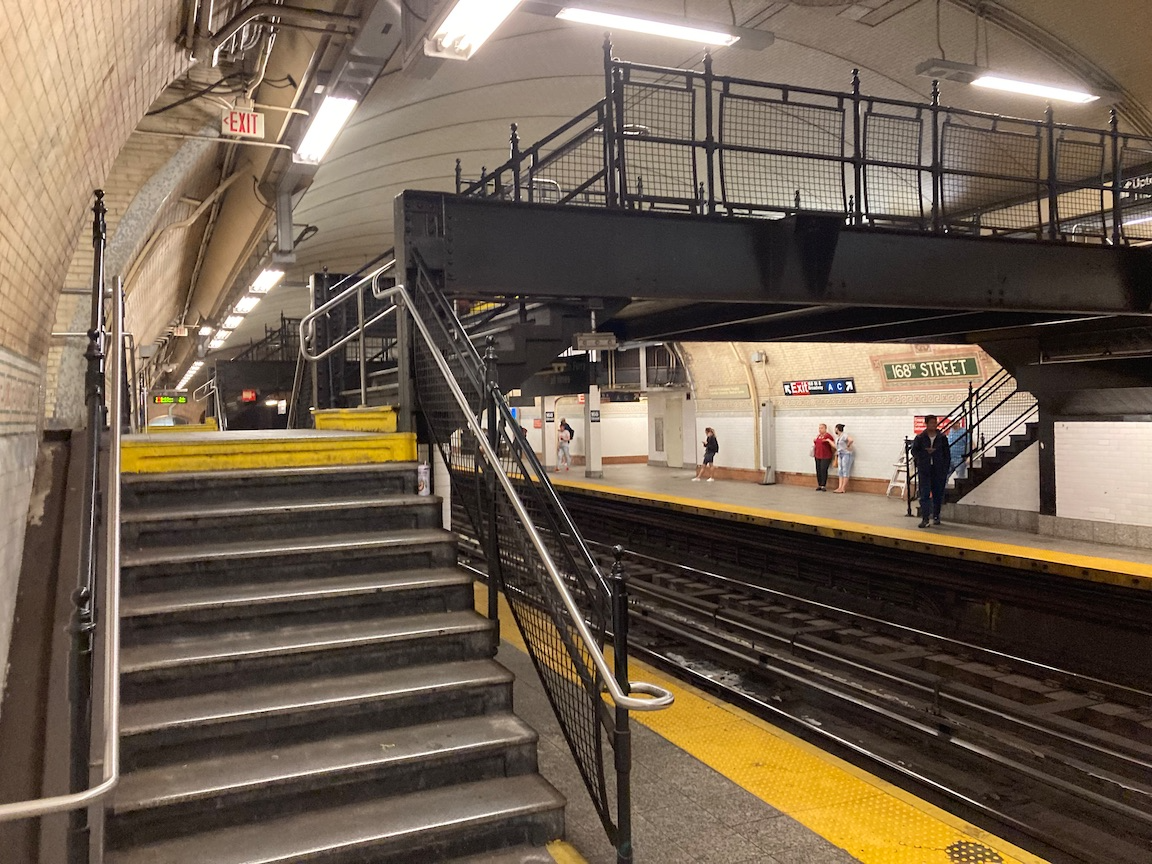

168 Street has accessibility issues in both the 1 train station and the passageway to the accessible A/C trains station. Space could be made for a chair lift from the northbound platform to the more northerly of the two pedestrian bridges. See the highlighted area in the first image below. The stairs on the other end of the bridge (second lift) might require a stair lift on the bridge and would require replacing one stairway to the southbound platform with a lift. The solution is not the same as for 181 Street because the elevators to the street are on opposite sides of the tunnel.

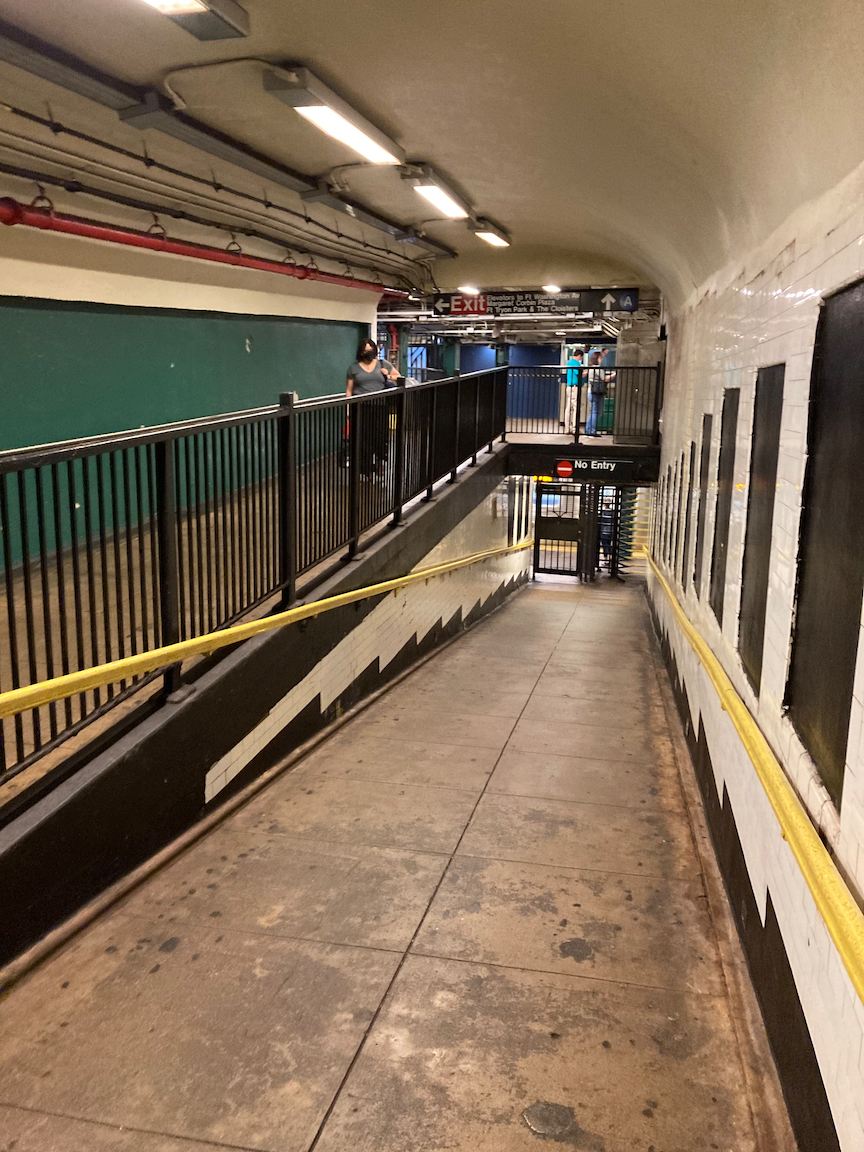

The passageway between the two parts of the 168 Street complex does not comply with the ADA as the ramp is too steeply sloped. Signs on the walls say as much. This might be remedied by cutting away part of the ramp to accommodate a lift. This is a busy transfer point and an engineering study of pedestrian movement through the passageway would be worthwhile. An alternative might be to enlarge the passageway to accommodate a lift or an ADA-compliant ramp. If accessibility were to be addressed at the original (1 train) station, it must be addressed in the passageway as well, to make the whole station complex wheelchair-accessible. A major hospital campus, New York Presbyterian, is located at this station, so while a complete accessibility project would be expensive it should be a priority.

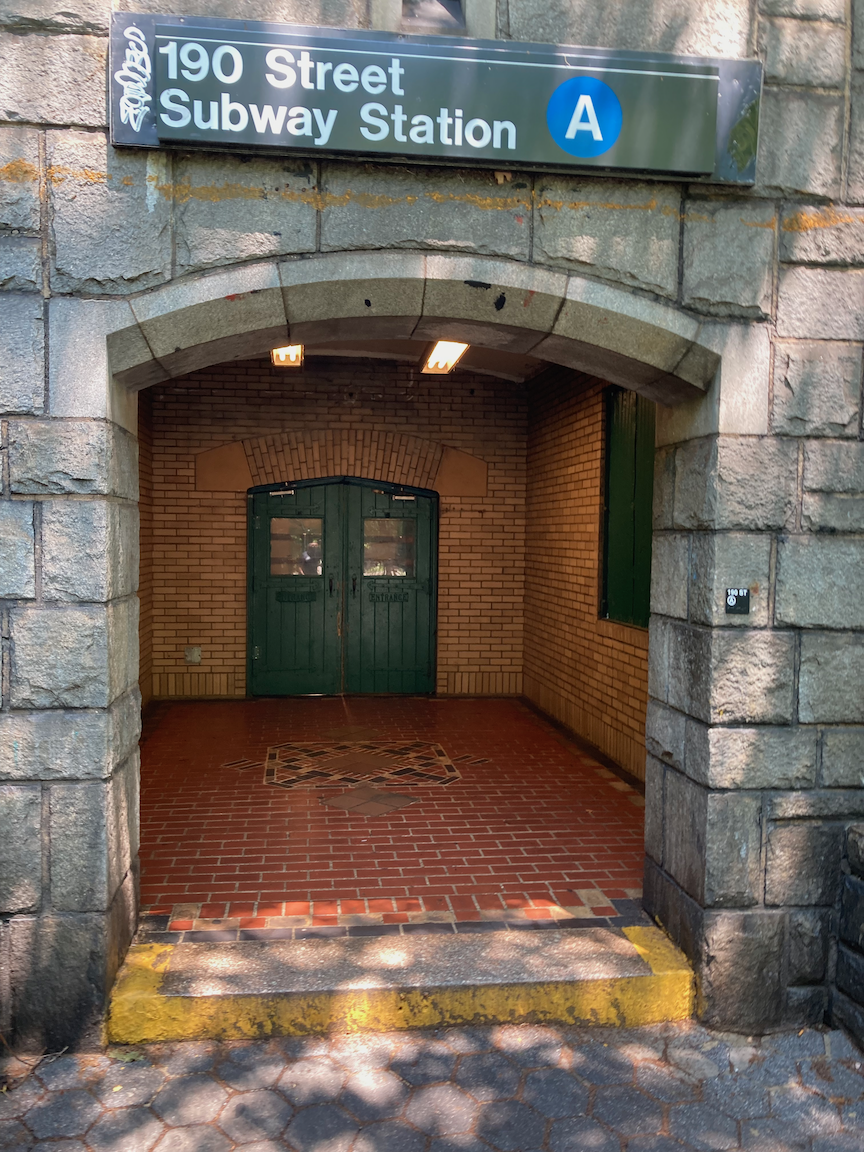

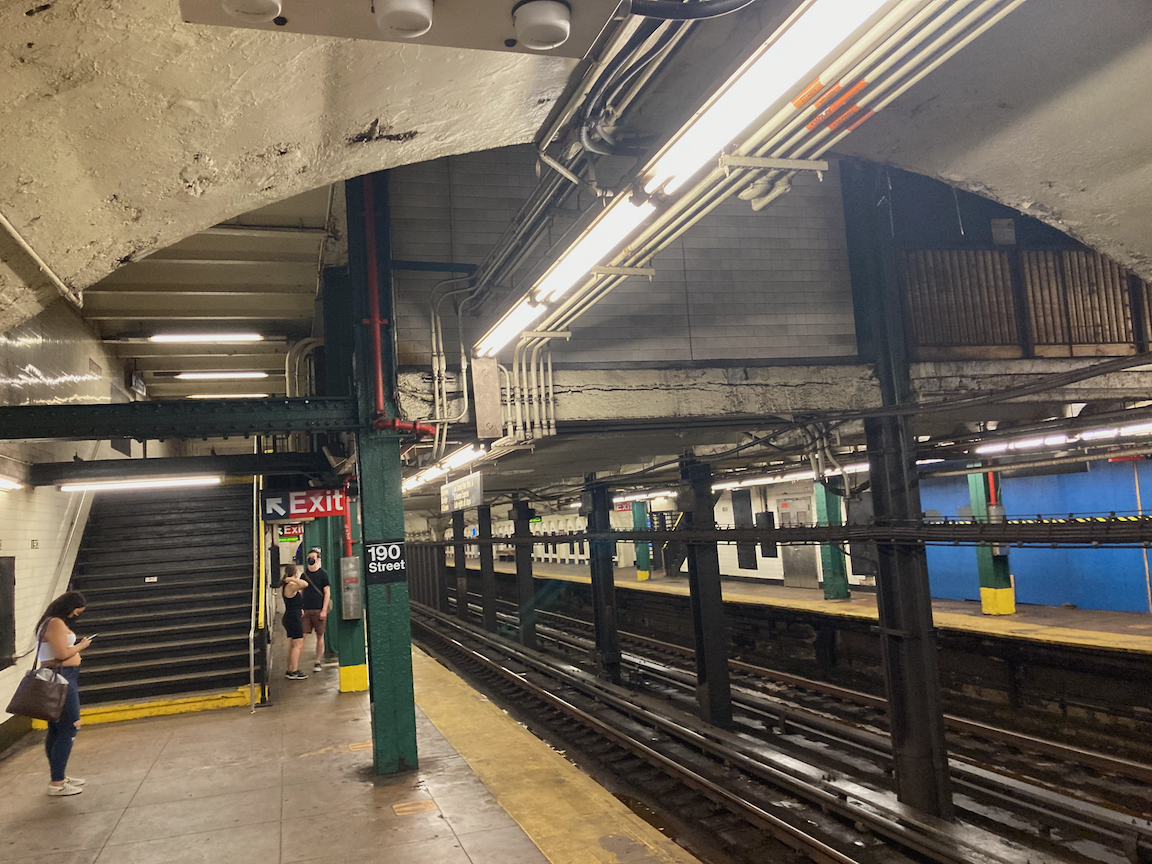

The 190 Street station presents a different set of accessibility challenges and opportunities. There are two entrances to the station: through a tunnel from Bennett Avenue, and by a bank of elevators from the station mezzanine to the station house on Fort Washington Avenue.
The ramp from the northbound platform to the pedestrian tunnel is too steep to be ADA-compliant, the pedestrian tunnel itself might be too steep, and there are three steps near the pedestrian tunnel entrance.
Could this be remedied? Yes, by rebuilding the pedestrian tunnel; this might entail new stairs and a lift to the mezzanine at the far end of both images above.
The mezzanine, where the fare control and elevators are, is reached by a pair of stairways from either platform. One stairway from each platform could be replaced by a lift. A better solution might be to enlarge the mezzanine to accommodate a pair of lifts without removing stairs. This would allow wheelchair users to be nearer the center of the train, where the conductor’s position is. The station walls are not curved at platform level, so this would be easier to accomplish than at 168 Street and 181 Street.
The elevators go from the mezzanine to a station house whose entrance is to a pleasant plaza 25 steps down (second image below) from Fort Washington Avenue. A small park is adjacent to this plaza. Perhaps a ramp could be constructed around the rear of the station house to street level (third image below). This seems the easiest part of the accessibility puzzle at this station to solve.
Making old subway stations accessible is rarely easy, and very little in New York City comes cheap. All this said, I cannot help thinking that while these stations were fully or partially closed for the replacement of their elevators, the MTA should have seized the opportunity to make them wheelchair-accessible. With a bit of out-of-the-box thinking, the 181 Street station might have been the easiest of the three. It is unlikely to happen in the near future, as the nearby 181 Street station (A train) is slated to be made wheelchair-accessible, and given the layout of the station this should be a comparatively easy job. Elevators are already in place from the mezzanine to Fort Washington Avenue at the north end of the station. For the same reason, the 190 Street station is unlikely to get an accessibility upgrade anytime soon. The 1 train station at 168 Street and the passageway connecting the two parts of the 168 Street complex need to be made fully accessible. People will argue that the money likely to be spent here could be spent on multiple accessibility projects. They would not be wrong, but this shouldn’t be seen as a zero-sum game. And the next time the MTA undertakes a project similar to what it did at these three stations, it should look hard at what else is to be done for full accessibility, and do it.
WHERE: Times Square subway station, Manhattan (fully accessible)
Photographs by Michael Cairl.
Times Square is actually four connected subway stations that opened between 1904 and 1927. In recent years they have been made both accessible and better connected. The most ambitious parts have been constructing a wide passageway underneath 7th Avenue between 41st and 42nd Streets, making it easier to move people around in normal conditions and in emergencies, and rebuilding the oldest part of the complex, housing the shuttle to Grand Central. This was part of the first subway in 1904, and the original platforms and two of the four original track ways were made redundant by the rebuilding but became available for other use. In this case, it was using all that space for a new stairway and elevator to the street right by One Times Square, the focus of New Year’s Eve festivities. The new entrance was also made possible by clawing back more of the Times Square streetscape from vehicular use.
The entrance features art work by Nick Cave. (Some steps away in the station mezzanine is a site-specific work by the late artist Roy Lichtenstein.) The elevator in the new entrance is the first in the subway to be equipped with two-way communications. There is no clutter to get in the way of sight lines or travel, and signage is good.
Good work, MTA!
Sara Hendren, What Can a Body Do? How We Meet the Built World (New York, Riverhead Books, 2020).
My friend Andy Simons, a graphic designer, co-founder of the Gowanus Canal Conservancy, and current Board Chair of the Brooklyn Greenway Initiative (a position I had from 2013 - 2019), gave me this book a year ago and it has been an eye-opener in so many respects. The Contents tells a lot without giving anything away:
INTRODUCTION: Who is the Built World Built For? A lectern for a Little Person and a laboratory with surprises. Where is disability? The universally assisted body.
LIMB. Cyborg arms vs. zip ties: Finding the body’s infinite adaptability and replacing the things that matter.
CHAIR. From “do it yourself murder” to cardboard furniture: Is a better world designed one-for-all, or all-for-one?
ROOM. DeafSpace, a hospital dorm, and design that anticipates life’s hardest choices. Rethinking “independent living.”
STREET. Geography and desire lines: Atypical minds and bodies navigate the landscape. Making space truly common.
CLOCK. Life on crip time. When the clock is the keeper of our days, what pace of life is fast enough?
The central theme here is that the built world has to accommodate all its users, if we are to accept that all people should have open access to what will make them productive, participating, enjoying members of society. This means going beyond norms and accessibility standards to create an environment that is open to all. As my colleague Geoff Ames remarked recently, we’ll all be disabled someday. This book looks at the built environment from several perspectives, including people with intellectual disabilities (the author’s son has Down syndrome). This is an excellent book for anyone working in, or otherwise interested in, the field of accessibility.
This quote from a Dutch planner and accessibility advocate named Karel Dollekens isn’t entirely accurate but the point here is that so much of the built environment just doesn’t work for a lot of people, whether or not they are “disabled.” The built environment as a whole keeps a lot of people from full opportunity and full enjoyment of life. Accessibility equals universal design, and it is for everybody.
In the post “Curb Cuts (3)” on this page, I noted a raised crosswalk on the Grand Concourse in the Bronx (pictured), probably a “pilot” installation, as an excellent step toward traffic calming and pedestrian safety. Now New York City will install 150 of these as reported by The New York Times: NYC Looks to Add Raised Crosswalks to Make Intersections Safer - The New York Times (nytimes.com). This is an exciting development. I’m interested to see where these will go and hope these will not be the last.
This is outstanding! A wheelchair lift built into the entrance to a listed (landmarked) building in London, the Fitzroy Hotel. If it can be done there, it can be done elsewhere. A huge shout-out to my friend Bob Panico for letting me know about this.
This interview with Temple Grandin is worth taking the time to read, and not just about autism. Her expertise and this interview cover a wide gamut of things and touch on accessibility, even though accessibility isn’t mentioned.
Photograph courtesy aggrowth.com
I’m writing here not about agricultural silos but the strikingly similar organizational silos. Merriam-Webster’s third definition of “silo” is
an isolated grouping, department, etc., that functions apart from others especially in a way seen as hindering communication and cooperation.
What I’m concerned about here is how different aspects of an accessibility project, or any undertaking for that matter, can be segregated into different entities, working against an integrated accessibility solution. An accessibility project at a transit station might belong to a transit agency, but the pathways to that station are the responsibility of, say, a local department of transportation. The funding for the accessibility project pays for the design at the station but not for pedestrian improvements required for safe access.
Approximate location of future Parkchester-Van Nest station. Photograph by Michael Cairl.
The Metropolitan Transportation Authority (MTA) recently announced the award of a contract to design and build Penn Station Access, bringing Metro North Railroad’s commuter trains along Amtrak’s Northeast Corridor to Pennsylvania Station for the first time. Tracks and overhead electric power for the trains will be added, as will four new stations in the Bronx. For a lot of money this will give people in the East Bronx another transportation option and will be another baby step toward a regional commuter rail system. The new stations will comply with the Americans with Disabilities Act (ADA) but there is no guarantee that station design elements that are problematic but ADA-compliant won’t result. See my previous post, “Armchairing.” In September 2021 I went to look at the sites of two of these stations: Parkchester-Van Nest (see my post “Central Bronx Mix No. 1” on the Other Walks Around Town page) and Co-Op City. My work assignment was to develop a work scope for the design of these two stations. The Parkchester-Van Nest station will be on a section of East Tremont Avenue approximately midway between traffic signals 0.5 mile (0.8 kilometer) apart. When I walked the site this looked like a ready-made speedway. The scope I prepared for the Parkchester-Van Nest station included a signalized intersection and crosswalk across East Tremont Avenue from the Parkchester housing complex to the station, and a bus lane at the station. This was deleted from the scope because (a) it was seen as adding to the bid cost, (b) it wasn’t included in the preliminary design, and (c) the street work was the responsibility of the New York City Department of Transportation (NYCDOT), not the agency awarding the contract, the MTA.
I’m quite willing to entertain a solution other than a signalized crossing here, as long as traffic is slowed to a safe enough speed that people of any ability can cross East Tremont Avenue safely. Let’s look at the best way to achieve this objective.
The site of the Co-Op City station is about a block from the end point of several bus lines. How will safe and accessible passage between the buses and the train station be implemented? The buses and trains are in the MTA’s jurisdiction but the bus stops and sidewalks belong to NYCDOT. One wonders.
The MTA and NYCDOT might well work together to create safe, accessible paths to the four new stations, and then they might not, for reasons ranging from cost to the boundary between the two agencies’ jurisdictions, to traffic engineers’ calculations of the impact on traffic flow. This is a clear example of siloing and disregards the fact that a complete, integrated project of this type has to be a safe and accessible one. Accessibility and safety cannot be add-ons, treated as checklists, or hoped for by the cooperation of separate entities. They have to be integral to the design and execution of the work, starting with conceptual design and continuing through regular operations.
Looking at this as an exercise in system engineering, let’s start by defining the system. The system is not just the train station. The system includes the train station, safe operation of local (Metro North) and express (Amtrak) trains through the station, and safe passage of the traveling public between the train and the side of the street opposite the station, and onward to connecting transportation (bus, taxi, ride share, paratransit). This has to be the system definition for projects of this type. Full stop. No exceptions.
Taking a system approach to accessibility is essential for the achievement of accessibility in public and private spaces. It requires the demolition of organizational silos. This requires different approaches to project organization and perhaps to project financing. So be it. Let’s organize accessibility about doing the right thing, not living with present organizational constraints and hoping for the best. We - professionals, advocates, elected officials, the general public - should accept nothing less. It is to this that I now devote my work.
